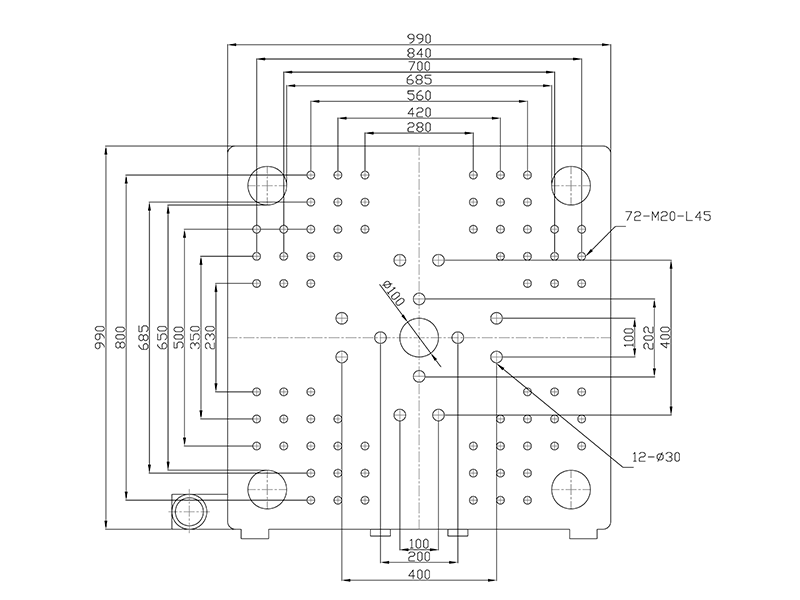

Item | Unit | JMS320 | ||
Injection Unit: | ||||
Screw type | A | B | C | |
Screw diameter | mm | 60 | 65 | 70 |
Screw L/D ratio | 21.7 | 20 | 18.6 | |
Shot Volume (Theoretical) | cm3 | 735 | 862 | 1000 |
Shot weight | g | 661 | 776 | 900 |
Shot weight | oz | 23.3 | 27.3 | 31.7 |
Injection pressure | Mpa | 219 | 187 | 161 |
Injection Speed | mm/s | 86 | ||
Injection stroke | mm | 260 | ||
Screw speed | rpm | 0~180 | ||
Clamping Unit: | ||||
Clamping force | KN | 3200 | ||
Toggle Stroke | mm | 640 | ||
Space between tie bars | mm | 685x685 | ||
Platen dimensions (HxV) | mm | 990x990 | ||
Max.Mould Height | mm | 690 | ||
Min.Mould Height | mm | 250 | ||
Ejector Stroke | mm | 160 | ||
Ejector Force | KN | 70 | ||
Ejector Number | 13 | |||
Others: | ||||
Max.Pump Pressure | Mpa | 16 | ||
Pump Motor Power | KW | 30 | ||
Heater Power | KW | 24.2 | ||
Machine Dimensions (LxWxH) | m | 6.88x1.77x2.43 | ||
Oil Tank Capacity | Liter | 600 | ||
Machine Weight | Ton | 13.2 |
Item | Unit | JMS320 | ||
Injection Unit: | ||||
Screw type | A | B | C | |
Screw diameter | mm | 60 | 65 | 70 |
Screw L/D ratio | 21.7 | 20 | 18.6 | |
Shot Volume (Theoretical) | cm3 | 735 | 862 | 1000 |
Shot weight | g | 661 | 776 | 900 |
Shot weight | oz | 23.3 | 27.3 | 31.7 |
Injection pressure | Mpa | 219 | 187 | 161 |
Injection Speed | mm/s | 86 | ||
Injection stroke | mm | 260 | ||
Screw speed | rpm | 0~180 | ||
Clamping Unit: | ||||
Clamping force | KN | 3200 | ||
Toggle Stroke | mm | 640 | ||
Space between tie bars | mm | 685x685 | ||
Platen dimensions (HxV) | mm | 990x990 | ||
Max.Mould Height | mm | 690 | ||
Min.Mould Height | mm | 250 | ||
Ejector Stroke | mm | 160 | ||
Ejector Force | KN | 70 | ||
Ejector Number | 13 | |||
Others: | ||||
Max.Pump Pressure | Mpa | 16 | ||
Pump Motor Power | KW | 30 | ||
Heater Power | KW | 24.2 | ||
Machine Dimensions (LxWxH) | m | 6.88x1.77x2.43 | ||
Oil Tank Capacity | Liter | 600 | ||
Machine Weight | Ton | 13.2 |

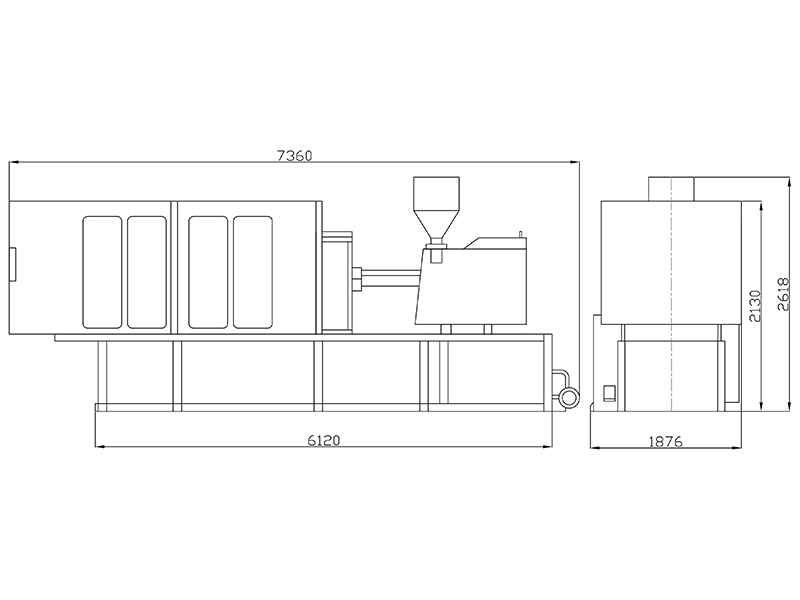

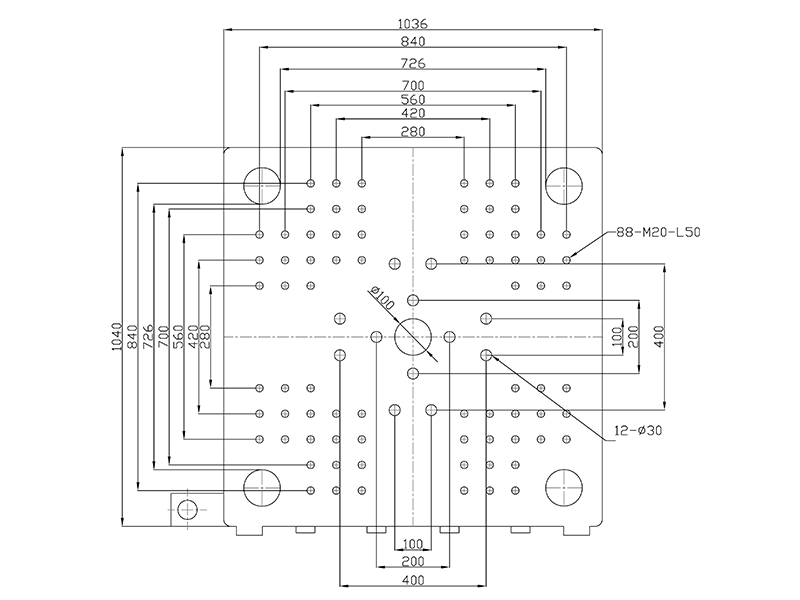

Item | Unit | JMS380 | ||
Injection Unit: | ||||
Screw type | A | B | C | |
Screw diameter | mm | 65 | 70 | 75 |
Screw L/D ratio | 22.4 | 20.6 | 19.2 | |
Shot Volume (Theoretical) | cm3 | 1094 | 1269 | 1457 |
Shot weight | g | 985 | 1142 | 1311 |
Shot weight | oz | 34.7 | 40.3 | 46.3 |
Injection pressure | Mpa | 208 | 180 | 156 |
Injection Speed | mm/s | 92 | ||
Injection stroke | mm | 330 | ||
Screw speed | rpm | 0~180 | ||
Clamping Unit: | ||||
Clamping force | KN | 3800 | ||
Toggle Stroke | mm | 700 | ||
Space between tie bars | mm | 726x726 | ||
Platen dimensions (HxV) | mm | 1036x1040 | ||
Max.Mould Height | mm | 760 | ||
Min.Mould Height | mm | 250 | ||
Ejector Stroke | mm | 180 | ||
Ejector Force | KN | 110 | ||
Ejector Number | 13 | |||
Others: | ||||
Max.Pump Pressure | Mpa | 16 | ||
Pump Motor Power | KW | 37 | ||
Heater Power | KW | 26 | ||
Machine Dimensions (LxWxH) | m | 7.36x1.88x2.62 | ||
Oil Tank Capacity | Liter | 700 | ||
Machine Weight | Ton | 15 |
Item | Unit | JMS380 | ||
Injection Unit: | ||||
Screw type | A | B | C | |
Screw diameter | mm | 65 | 70 | 75 |
Screw L/D ratio | 22.4 | 20.6 | 19.2 | |
Shot Volume (Theoretical) | cm3 | 1094 | 1269 | 1457 |
Shot weight | g | 985 | 1142 | 1311 |
Shot weight | oz | 34.7 | 40.3 | 46.3 |
Injection pressure | Mpa | 208 | 180 | 156 |
Injection Speed | mm/s | 92 | ||
Injection stroke | mm | 330 | ||
Screw speed | rpm | 0~180 | ||
Clamping Unit: | ||||
Clamping force | KN | 3800 | ||
Toggle Stroke | mm | 700 | ||
Space between tie bars | mm | 726x726 | ||
Platen dimensions (HxV) | mm | 1036x1040 | ||
Max.Mould Height | mm | 760 | ||
Min.Mould Height | mm | 250 | ||
Ejector Stroke | mm | 180 | ||
Ejector Force | KN | 110 | ||
Ejector Number | 13 | |||
Others: | ||||
Max.Pump Pressure | Mpa | 16 | ||
Pump Motor Power | KW | 37 | ||
Heater Power | KW | 26 | ||
Machine Dimensions (LxWxH) | m | 7.36x1.88x2.62 | ||
Oil Tank Capacity | Liter | 700 | ||
Machine Weight | Ton | 15 |

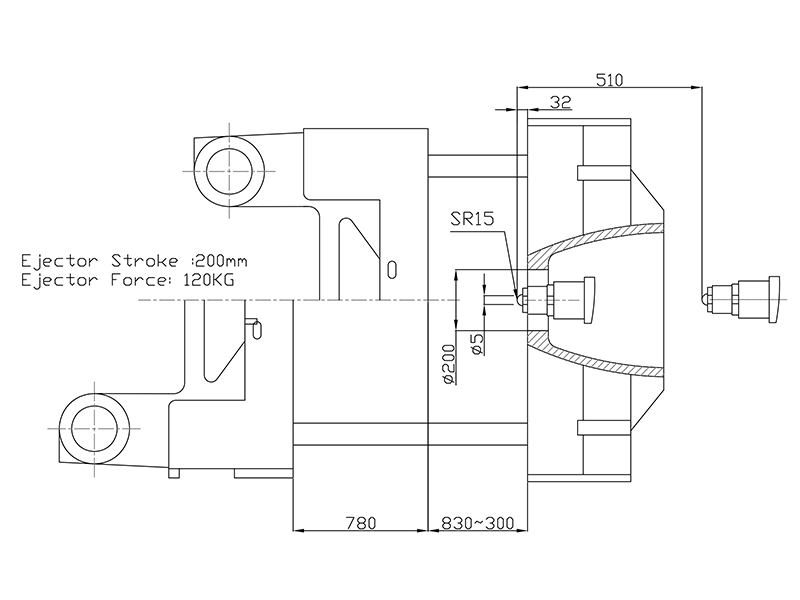

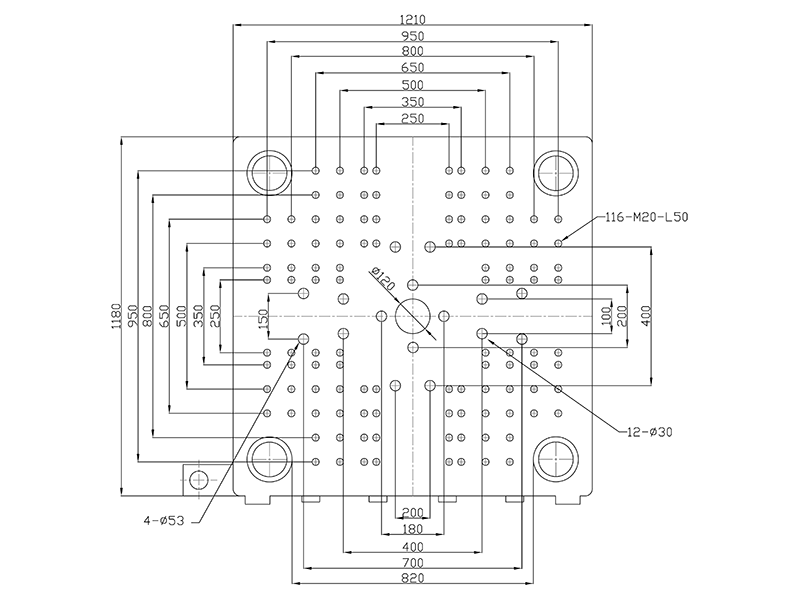

Item | Unit | JMS470 | ||
Injection Unit: | ||||
Screw type | A | B | C | |
Screw diameter | mm | 75 | 80 | 84 |
Screw L/D ratio | 21.4 | 20 | 19 | |
Shot Volume (Theoretical) | cm3 | 1722 | 1959 | 2160 |
Shot weight | g | 1550 | 1763 | 1944 |
Shot weight | oz | 54.7 | 62.2 | 68.6 |
Injection pressure | Mpa | 177 | 156 | 141 |
Injection Speed | mm/s | 96 | ||
Injection stroke | mm | 390 | ||
Screw speed | rpm | 0~160 | ||
Clamping Unit: | ||||
Clamping force | KN | 4700 | ||
Toggle Stroke | mm | 780 | ||
Space between tie bars | mm | 820x800 | ||
Platen dimensions (HxV) | mm | 1210x1180 | ||
Max.Mould Height | mm | 830 | ||
Min.Mould Height | mm | 300 | ||
Ejector Stroke | mm | 200 | ||
Ejector Force | KN | 120 | ||
Ejector Number | 17 | |||
Others: | ||||
Max.Pump Pressure | Mpa | 16 | ||
Pump Motor Power | KW | 45 | ||
Heater Power | KW | 32.5 | ||

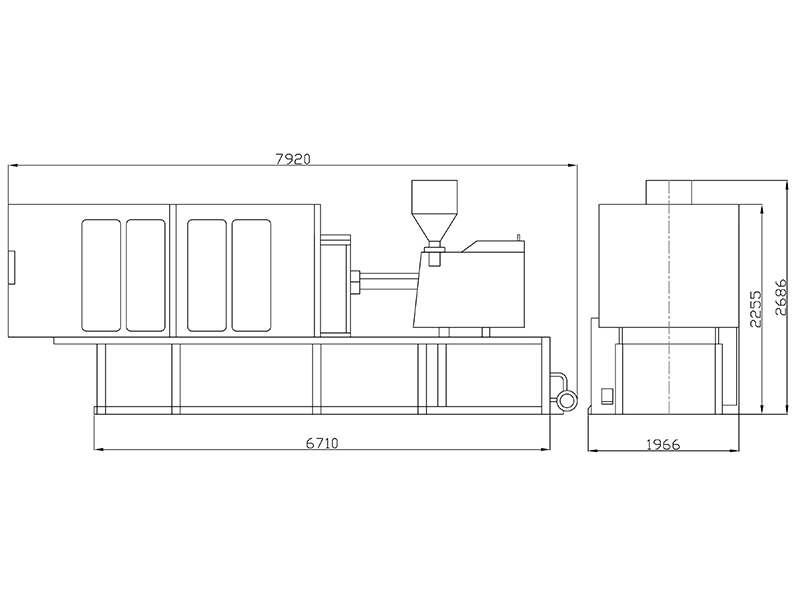

Machine Dimensions (LxWxH) | m | 7.92x1.97x2.69 | ||
Oil Tank Capacity | Liter | 800 | ||
Machine Weight | Ton | 19 |
Item | Unit | JMS470 | ||
Injection Unit: | ||||
Screw type | A | B | C | |
Screw diameter | mm | 75 | 80 | 84 |
Screw L/D ratio | 21.4 | 20 | 19 | |
Shot Volume (Theoretical) | cm3 | 1722 | 1959 | 2160 |
Shot weight | g | 1550 | 1763 | 1944 |
Shot weight | oz | 54.7 | 62.2 | 68.6 |
Injection pressure | Mpa | 177 | 156 | 141 |
Injection Speed | mm/s | 96 | ||
Injection stroke | mm | 390 | ||
Screw speed | rpm | 0~160 | ||
Clamping Unit: | ||||
Clamping force | KN | 4700 | ||
Toggle Stroke | mm | 780 | ||
Space between tie bars | mm | 820x800 | ||
Platen dimensions (HxV) | mm | 1210x1180 | ||
Max.Mould Height | mm | 830 | ||
Min.Mould Height | mm | 300 | ||
Ejector Stroke | mm | 200 | ||
Ejector Force | KN | 120 | ||
Ejector Number | 17 | |||
Others: | ||||
Max.Pump Pressure | Mpa | 16 | ||
Pump Motor Power | KW | 45 | ||
Heater Power | KW | 32.5 | ||
Machine Dimensions (LxWxH) | m | 7.92x1.97x2.69 | ||
Oil Tank Capacity | Liter | 800 | ||
Machine Weight | Ton | 19 |
Item | Unit | JMS570 | |||
Injection Unit: | |||||
Screw type | A | B | C | D | |
Screw diameter | mm | 75 | 84 | 90 | 100 |
Screw L/D ratio | 23.6 | 21.1 | 19.7 | 17.7 | |
Shot Volume (Theoretical) | cm3 | 1987 | 2492 | 2861 | 3532 |
Shot weight | g | 1788 | 2242 | 2575 | 3179 |
Shot weight | oz | 63.1 | 79.1 | 90.8 | 112.1 |
Injection pressure | Mpa | 205 | 163 | 142 | 115 |
Injection Speed | mm/s | 90 | |||
Injection stroke | mm | 450 | |||
Screw speed | rpm | 0~110 | |||
Clamping Unit: | |||||
Clamping force | KN | 5700 | |||
Toggle Stroke | mm | 850 | |||
Space between tie bars | mm | 835x835 | |||

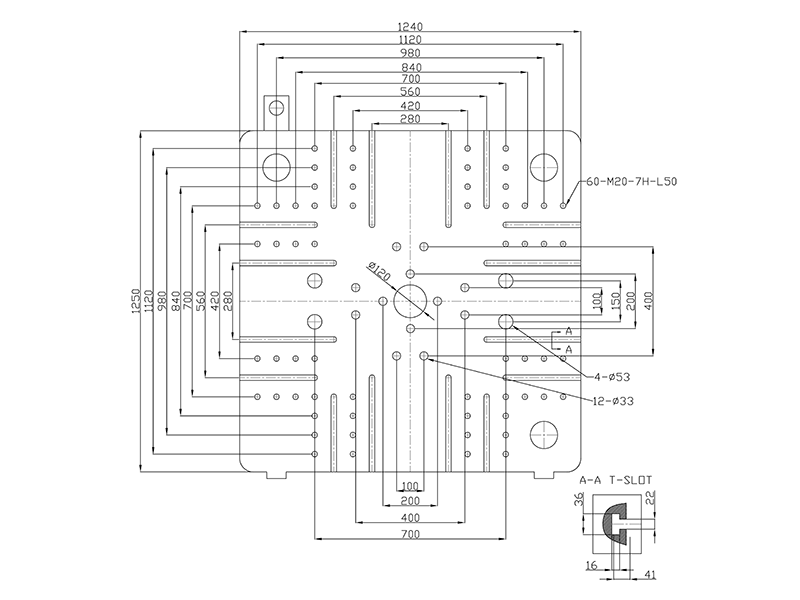

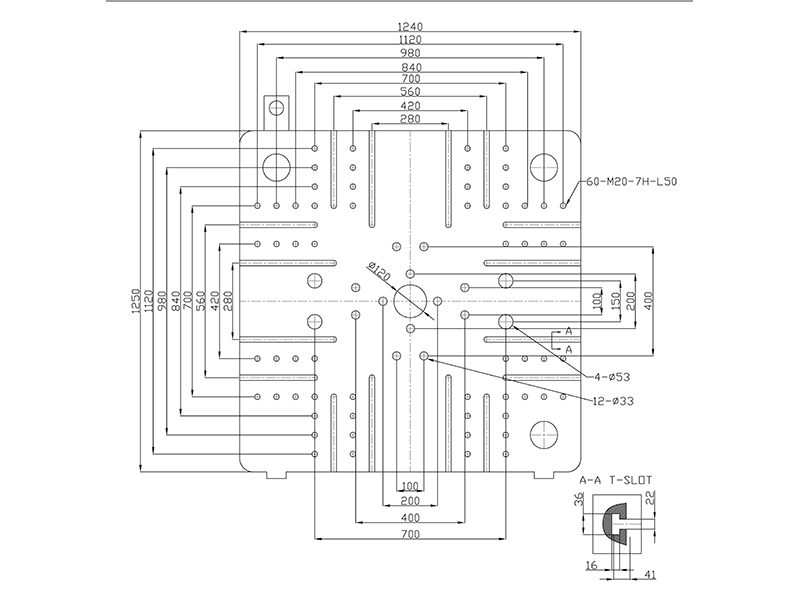

Platen dimensions (HxV) | mm | 1240x1250 | |||
Max.Mould Height | mm | 880 | |||
Min.Mould Height | mm | 350 | |||

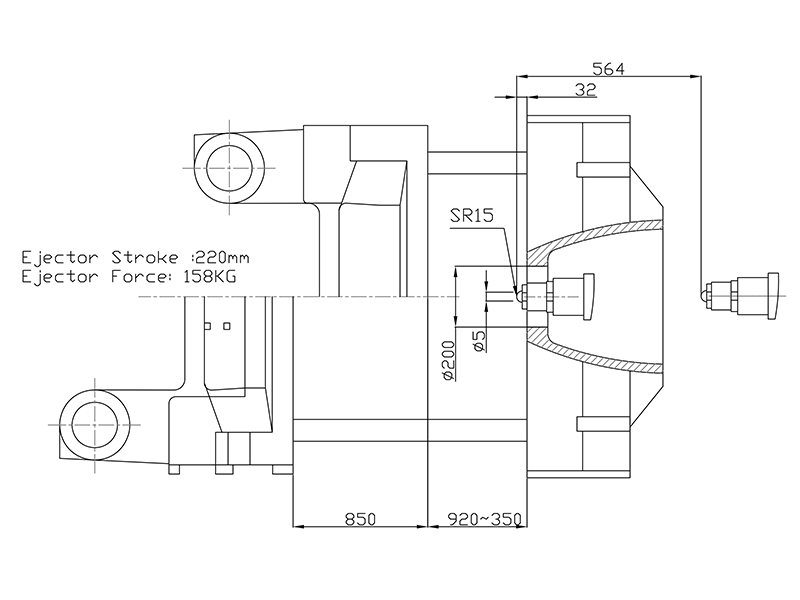

Ejector Stroke | mm | 250 | |||
Ejector Force | KN | 158 | |||
Ejector Number | 17 | ||||
Others: | |||||
Max.Pump Pressure | Mpa | 16 | |||
Pump Motor Power | KW | 55 | |||
Heater Power | KW | 36.9 | |||

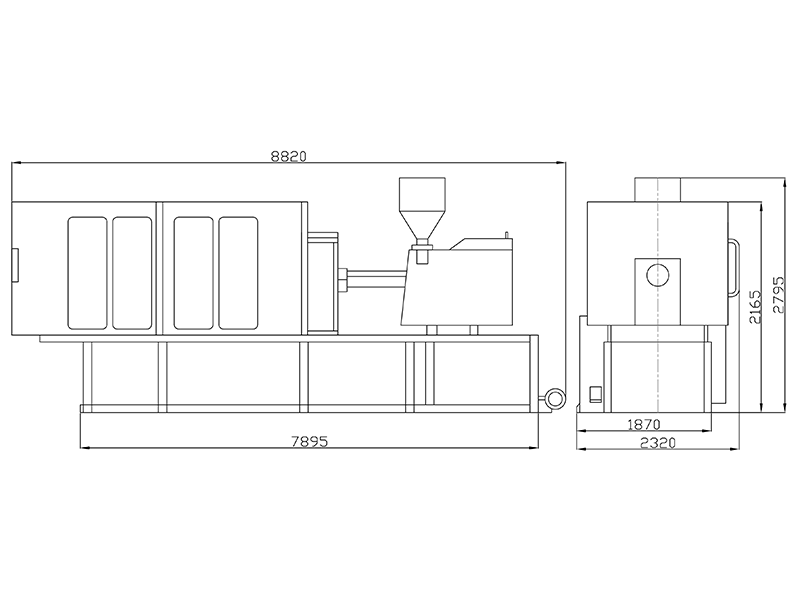

Machine Dimensions (LxWxH) | m | 8.82x2.32x2.8 | |||
Oil Tank Capacity | Liter | 1000 | |||
Machine Weight | Ton | 27 |
Item | Unit | JMS570 | |||
Injection Unit: | |||||
Screw type | A | B | C | D | |
Screw diameter | mm | 75 | 84 | 90 | 100 |
Screw L/D ratio | 23.6 | 21.1 | 19.7 | 17.7 | |
Shot Volume (Theoretical) | cm3 | 1987 | 2492 | 2861 | 3532 |
Shot weight | g | 1788 | 2242 | 2575 | 3179 |
Shot weight | oz | 63.1 | 79.1 | 90.8 | 112.1 |
Injection pressure | Mpa | 205 | 163 | 142 | 115 |
Injection Speed | mm/s | 90 | |||
Injection stroke | mm | 450 | |||
Screw speed | rpm | 0~110 | |||
Clamping Unit: | |||||
Clamping force | KN | 5700 | |||
Toggle Stroke | mm | 850 | |||
Space between tie bars | mm | 835x835 | |||
Platen dimensions (HxV) | mm | 1240x1250 | |||
Max.Mould Height | mm | 880 | |||
Min.Mould Height | mm | 350 | |||
Ejector Stroke | mm | 250 | |||
Ejector Force | KN | 158 | |||
Ejector Number | 17 | ||||
Others: | |||||
Max.Pump Pressure | Mpa | 16 | |||
Pump Motor Power | KW | 55 | |||
Heater Power | KW | 36.9 | |||
Machine Dimensions (LxWxH) | m | 8.82x2.32x2.8 | |||
Oil Tank Capacity | Liter | 1000 | |||
Machine Weight | Ton | 27 |

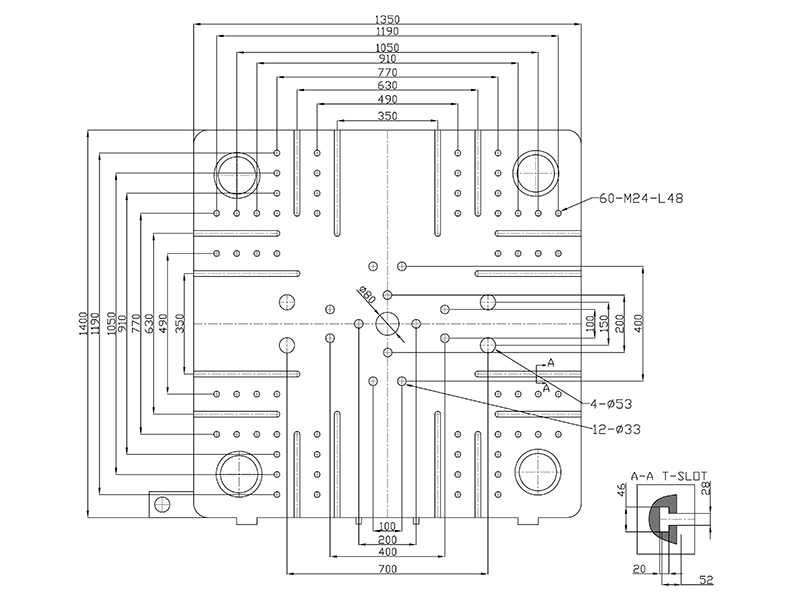

Item | Unit | JMS-650 | |||
Injection Unit: | |||||
Screw type | A | B | C | D | |
Screw diameter | mm | 80 | 90 | 100 | 110 |
Screw L/D ratio | 24.8 | 22 | 19.8 | 18 | |
Shot Volume (Theoretical) | cm3 | 2261 | 2861 | 3533 | 4274 |
Shot weight | g | 2035 | 2575 | 3179 | 3847 |
Shot weight | oz | 71.8 | 90.8 | 112.1 | 135.7 |
Injection pressure | Mpa | 224 | 177 | 143 | 118 |
Injection Speed | mm/s | 95 | |||
Injection stroke | mm | 450 | |||
Screw speed | rpm | 0~110 | |||
Clamping Unit: | |||||
Clamping force | KN | 6500 | |||
Toggle Stroke | mm | 900 | |||
Space between tie bars | mm | 900x900 | |||
Platen dimensions (HxV) | mm | 1350x1400 | |||
Max.Mould Height | mm | 900 | |||
Min.Mould Height | mm | 400 | |||

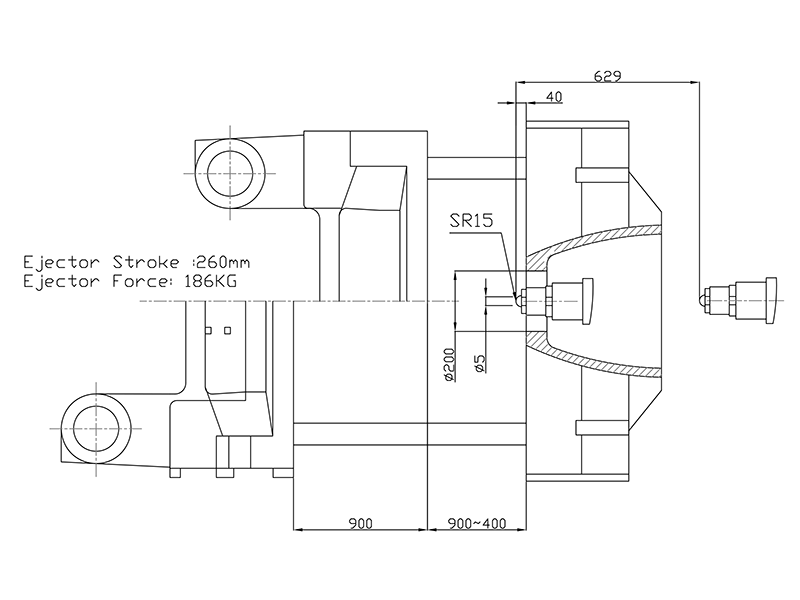

Ejector Stroke | mm | 260 | |||
Ejector Force | KN | 186 | |||
Ejector Number | 17 | ||||
Others: | |||||
Max.Pump Pressure | Mpa | 16 | |||
Pump Motor Power | KW | 30+30 | |||
Heater Power | KW | 50.9 | |||

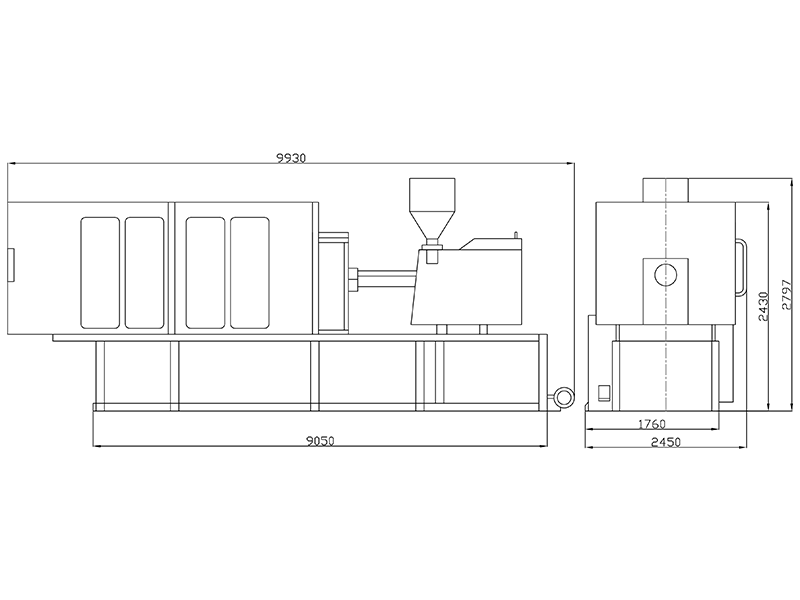

Machine Dimensions (LxWxH) | m | 9.93 x 2.45 x 2.80 | |||
Oil Tank Capacity | Liter | 1200 | |||
Machine Weight | Ton | 32 |
Item | Unit | JMS-650 | |||
Injection Unit: | |||||
Screw type | A | B | C | D | |
Screw diameter | mm | 80 | 90 | 100 | 110 |
Screw L/D ratio | 24.8 | 22 | 19.8 | 18 | |
Shot Volume (Theoretical) | cm3 | 2261 | 2861 | 3533 | 4274 |
Shot weight | g | 2035 | 2575 | 3179 | 3847 |
Shot weight | oz | 71.8 | 90.8 | 112.1 | 135.7 |
Injection pressure | Mpa | 224 | 177 | 143 | 118 |
Injection Speed | mm/s | 95 | |||
Injection stroke | mm | 450 | |||
Screw speed | rpm | 0~110 | |||
Clamping Unit: | |||||
Clamping force | KN | 6500 | |||
Toggle Stroke | mm | 900 | |||
Space between tie bars | mm | 900x900 | |||
Platen dimensions (HxV) | mm | 1350x1400 | |||
Max.Mould Height | mm | 900 | |||
Min.Mould Height | mm | 400 | |||
Ejector Stroke | mm | 260 | |||
Ejector Force | KN | 186 | |||
Ejector Number | 17 | ||||
Others: | |||||
Max.Pump Pressure | Mpa | 16 | |||
Pump Motor Power | KW | 30+30 | |||
Heater Power | KW | 50.9 | |||
Machine Dimensions (LxWxH) | m | 9.93 x 2.45 x 2.80 | |||
Oil Tank Capacity | Liter | 1200 | |||
Machine Weight | Ton | 32 |

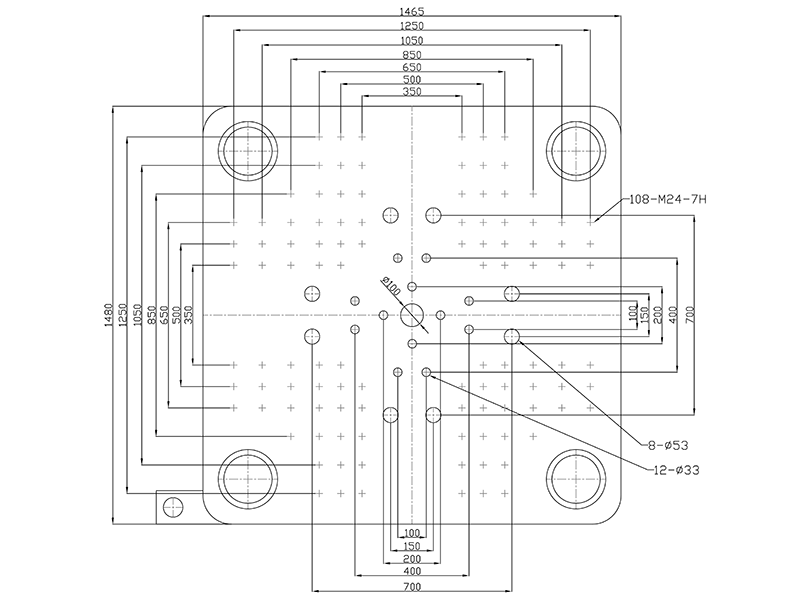

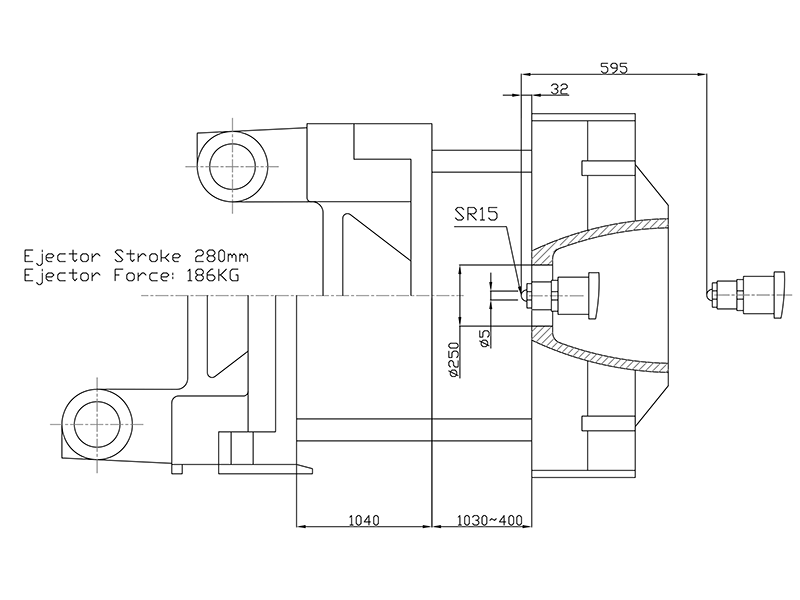

Item | Unit | JMS800 | |||
Injection Unit: | |||||
Screw type | A | B | C | D | |
Screw diameter | mm | 90 | 100 | 110 | 120 |
Screw L/D ratio | 24.5 | 22 | 20 | 18.3 | |
Shot Volume (Theoretical) | cm3 | 2925 | 3611 | 4369 | 5200 |
Shot weight | g | 2632 | 3250 | 3932 | 4680 |
Shot weight | oz | 92.9 | 114.6 | 138.7 | 165.1 |
Injection pressure | Mpa | 228 | 184 | 152 | 128 |
Injection Speed | mm/s | 88 | |||
Injection stroke | mm | 460 | |||
Screw speed | rpm | 0~110 | |||
Clamping Unit: | |||||
Clamping force | KN | 8000 | |||
Toggle Stroke | mm | 1040 | |||
Space between tie bars | mm | 1000x1000 | |||
Platen dimensions (HxV) | mm | 1465x1480 | |||
Max.Mould Height | mm | 1030 | |||
Min.Mould Height | mm | 400 | |||
Ejector Stroke | mm | 280 | |||
Ejector Force | KN | 186 | |||
Ejector Number | 21 | ||||
Others: | |||||
Max.Pump Pressure | Mpa | 16 | |||
Pump Motor Power | KW | 37+37 | |||
Heater Power | KW | 56.1 | |||
Machine Dimensions (LxWxH) | m | 11.05x2.65x3.80 | |||
Oil Tank Capacity | Liter | 1500 | |||
Machine Weight | Ton | 40 |
Item | Unit | JMS800 | |||
Injection Unit: | |||||
Screw type | A | B | C | D | |
Screw diameter | mm | 90 | 100 | 110 | 120 |
Screw L/D ratio | 24.5 | 22 | 20 | 18.3 | |
Shot Volume (Theoretical) | cm3 | 2925 | 3611 | 4369 | 5200 |
Shot weight | g | 2632 | 3250 | 3932 | 4680 |
Shot weight | oz | 92.9 | 114.6 | 138.7 | 165.1 |
Injection pressure | Mpa | 228 | 184 | 152 | 128 |
Injection Speed | mm/s | 88 | |||
Injection stroke | mm | 460 | |||
Screw speed | rpm | 0~110 | |||
Clamping Unit: | |||||
Clamping force | KN | 8000 | |||
Toggle Stroke | mm | 1040 | |||
Space between tie bars | mm | 1000x1000 | |||
Platen dimensions (HxV) | mm | 1465x1480 | |||
Max.Mould Height | mm | 1030 | |||
Min.Mould Height | mm | 400 | |||
Ejector Stroke | mm | 280 | |||
Ejector Force | KN | 186 | |||
Ejector Number | 21 | ||||
Others: | |||||
Max.Pump Pressure | Mpa | 16 | |||
Pump Motor Power | KW | 37+37 | |||
Heater Power | KW | 56.1 | |||

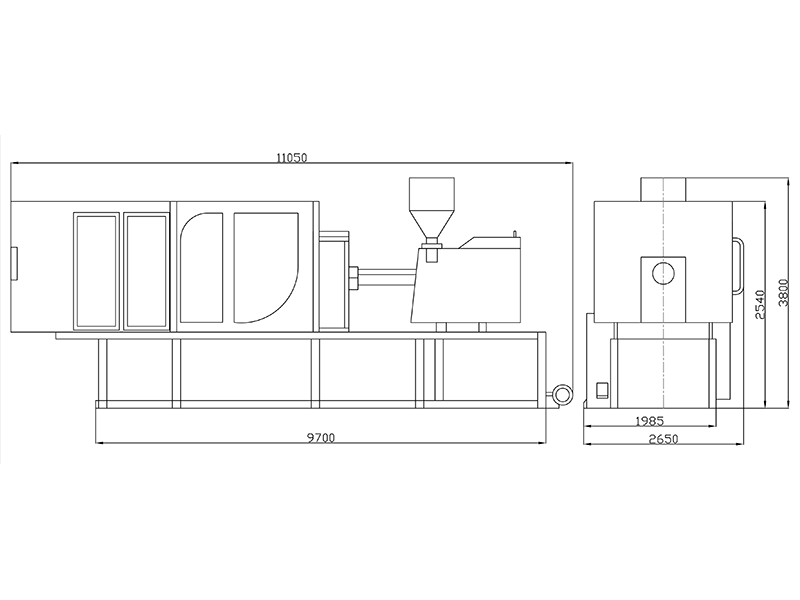

Machine Dimensions (LxWxH) | m | 11.05x2.65x3.80 | |||
Oil Tank Capacity | Liter | 1500 | |||
Machine Weight | Ton | 40 |
